Type 2 · Single slide

TY-S series

The TY machine with a single slide table. The lower mould slides out of the clamp towards the operator, so inserts go in and parts come out outside the mould area — easy to operate, with the safety of a clear working zone.

13–250 tclamping force
28–828 gmax. shot weight (PS)
Ø20–Ø65screw options
13machine sizes

Technical data Check available options

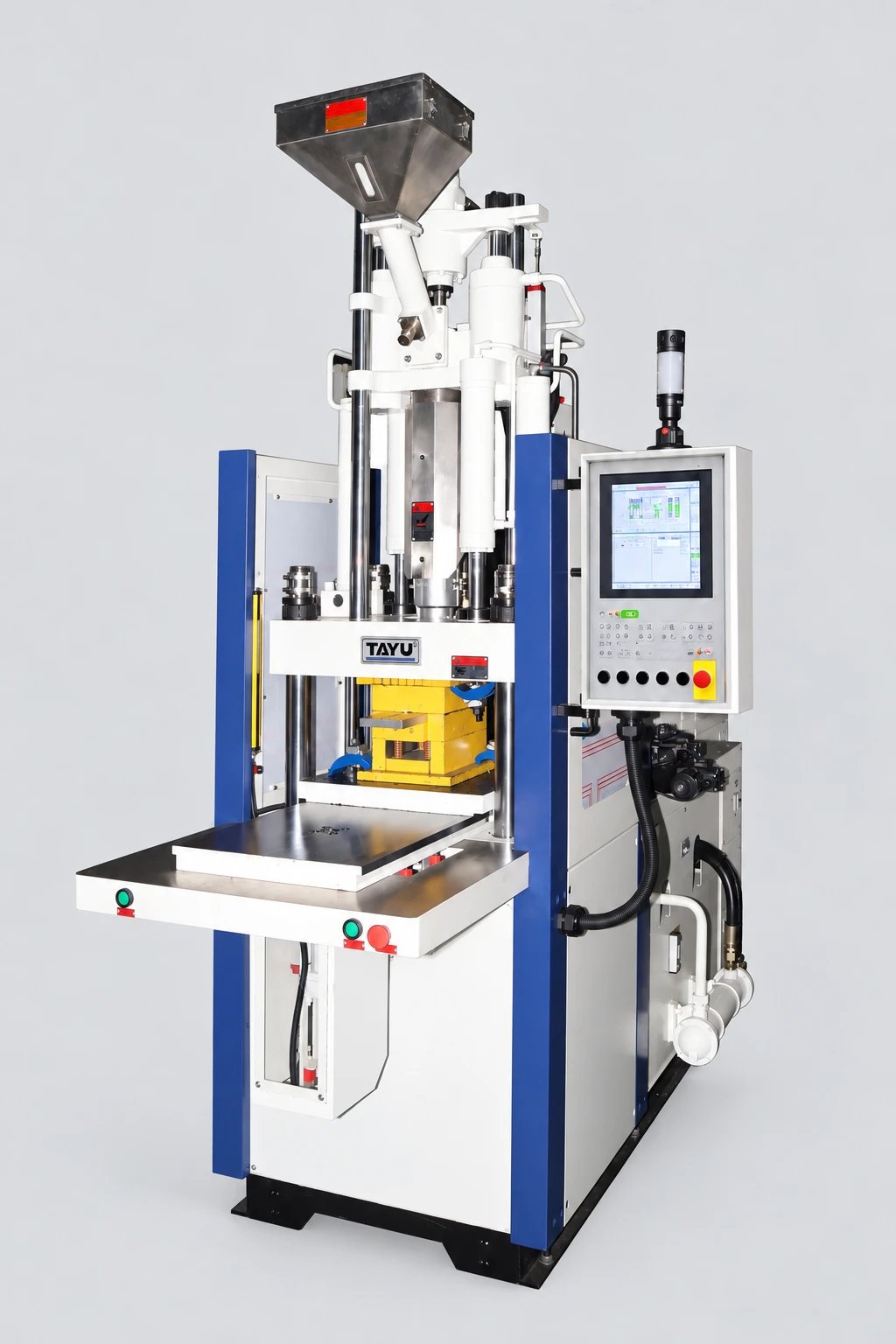

TAYU TY-S single slide vertical injection moulding machine with the slide table extended

How it works

01

Reciprocating single slide

The slide carries the lower mould out of the clamp for loading and unloading, then back in for moulding.

02

Nitrided slide platen

The slide platen is nitrided for a longer service life under continuous loading.

03

Safe, clear view

Loading happens outside the tie bars and the mould area — the operator never reaches into the clamp.

04

Large-part loading

Ideal when inserts or parts are large, heavy or need a clear view to position correctly.

Single slide — cycle

Side view · operator right

Top view · operator bottom

Technical data

TY-S series — full specifications

Screw-dependent values are shown per screw option. On a phone, scroll the tables sideways.

TY-S series · TY-150S – TY-600S
Model	TY-150S13 t			TY-200S18 t			TY-260S25 t				TY-350S35 t				TY-400S40 t				TY-600S60 t
Injection unit
Screw diameter mm	Ø20	Ø22	Ø25	Ø22	Ø25	Ø28	Ø22	Ø25	Ø28	Ø32	Ø22	Ø25	Ø28	Ø32	Ø25	Ø28	Ø32	Ø36	Ø25	Ø28	Ø32	Ø36
Theoretical shot volume cm³	31	38	49	39	51	64	39	51	64	84	39	51	64	84	61	76	100	127	61	76	100	127
Max. shot weight (PS) g / oz	28/0.9	34/1.2	43/1.5	35/1.2	45/1.5	57/2.0	35/1.2	45/1.5	57/2.0	75/2.6	35/1.2	45/1.5	57/2.0	75/2.6	54/1.9	68/2.4	89/3.1	113/4	54/1.9	68/2.4	89/3.1	113/4
Injection pressure kg/cm²	1968	1627	1260	2342	1814	1446	2342	1814	1446	1107	2342	1814	1446	1107	2329	1857	1421	1123	2329	1857	1421	1123
Injection rate cm³/s	36	44	57	30	39	50	30	39	50	65	40	52	66	86	41	51	67	85	65	81	106	135
Injection speed mm/s	117			81			81				107				83				132
Locating ring diameter mm	Ø90			Ø90			Ø90				Ø90				Ø100				Ø100
Temperature control zones	2			3			3				3				3				3
Hopper capacity L	15			15			15				15				20				20
Nozzle protrusion from platen mm	30			30			30				30				30				35
Clamping unit
Clamping force t	13			18			25				35				40				60
Mould opening force t	2.3			2.8			3.4				3.8				4.2				5
Min. mould height mm	120/180			100/180			100/180				100/180				150/200				150/200
Opening stroke mm	160			180			180				200				200				200
Max. open daylight mm	280/340			280/360			280/360				300/380				350/400				350/400
Tie-bar distance mm	280 × 145			310 × 160			360 × 230				360 × 230				415 × 255				460 × 310
Ejector stroke mm	60			60			60				60				60				60
Ejector force t	2			2			2				2				2				2
Table
Slide platen size mm	270 × 240			300 × 250			350 × 350				350 × 350				390 × 420				450 × 480
Slide platen stroke mm	240			250			350				350				420				480
Max. mould dimensions mm	230 × 200			260 × 210			250 × 300				250 × 300				325 × 350				400 × 425
Power
Max. hydraulic pressure kg/cm²	140			140			140				140				140				140
Oil tank capacity L	100			120			120				160				160				260
Pump motor power kW	3			4			4				5.5				5.5				7.5
Barrel heating power kW	2.5			3.1			3.1				3.1				4.5				4.6
Total connected power kW	5.5			7.1			7.1				8.6				10				12.1
Cooling water L/min	15			15			15				25				25				35
Machine
Dimensions (L × W × H) m	1.6 × 0.9 × 2.6			1.7 × 0.9 × 2.9			1.7 × 0.9 × 2.9				1.7 × 1 × 3				2.1 × 1.1 × 3				2.3 × 1.2 × 3
Machine weight t	0.7			1.1			1.2				1.3				1.9				2.4
Work table height mm	926			936			936				975				1071				1081

TY-S series · TY-700S – TY-2500S
Model	TY-700S70 t				TY-850S85 t				TY-1000S100 t		TY-1200S120 t			TY-1600S160 t			TY-2200S213 t			TY-2500S250 t
Injection unit
Screw diameter mm	Ø28	Ø32	Ø36	Ø42	Ø28	Ø32	Ø36	Ø42	Ø36	Ø42	Ø42	Ø46	Ø50	Ø46	Ø50	Ø55	Ø46	Ø50	Ø55	Ø55	Ø60	Ø65
Theoretical shot volume cm³	110	144	183	249	110	144	183	249	213	290	332	398	471	398	471	569	398	471	569	664	791	928
Max. shot weight (PS) g / oz	98/3.4	129/4.5	163/5.7	222/7.8	98/3.4	129/4.5	163/5.7	222/7.8	190/6.7	259/9.1	296/10.4	355/12.5	420/14.8	355/12.5	420/14.8	508/17.9	355/12.5	420/14.8	508/17.9	593/20.9	706/24.9	828/29.2
Injection pressure kg/cm²	2848	2180	1722	1265	2848	2180	1722	1265	2457	1805	2218	1849	1565	2311	1956	1616	2311	1956	1616	2311	1942	1654
Injection rate cm³/s	53	69	88	119	62	81	102	140	109	149	122	146	172	157	186	225	189	223	270	232	276	324
Injection speed mm/s	86				101				108		88			94			113			97
Locating ring diameter mm	Ø120				Ø120				Ø120		Ø120			Ø120			Ø120			Ø120
Temperature control zones	4				4				4		4			4			5			6
Hopper capacity L	30				30				30		30			30			30			30
Nozzle protrusion from platen mm	35				35				35		35			40			40			45
Clamping unit
Clamping force t	70				85				100		120			160			213			250
Mould opening force t	7.2				10.5				10.5		12			16			16			18
Min. mould height mm	200/250				200/250				200		250			300			350			350
Opening stroke mm	250				250				250		300			300			300			400
Max. open daylight mm	450/500				450/500				450		550			600			650			750
Tie-bar distance mm	500 × 340				500 × 340				560 × 360		600 × 400			660 × 630			720 × 670			720 × 700
Ejector stroke mm	70				70				75		100			100			150			150
Ejector force t	2.3				2.3				2.3		3.9			5.3			6.2			7
Table
Slide platen size mm	495 × 500				495 × 500				555 × 600		590 × 725			640 × 800			695 × 950			695 × 950
Slide platen stroke mm	500				500				600		750			800			950			950
Max. mould dimensions mm	450 × 450				450 × 450				450 × 450		500 × 600			550 × 650			600 × 800			600 × 800
Power
Max. hydraulic pressure kg/cm²	140				140				140		140			175			175			175
Oil tank capacity L	260				260				460		460			500			600			730
Pump motor power kW	7.5				11				15		15			18.5			22			30
Barrel heating power kW	4.7				4.7				5.2		10.7			12.5			12.5			16.8
Total connected power kW	12.2				15.7				20.2		25.7			31			34.5			46.8
Cooling water L/min	35				40				45		45			50			60			60
Machine
Dimensions (L × W × H) m	2.5 × 1.3 × 3.3				2.5 × 1.3 × 3.3				2.6 × 1.4 × 3.7		2.8 × 1.6 × 4.3			3.1 × 1.7 × 4.4			3.5 × 1.7 × 4.7			3.5 × 1.6 × 5.4
Machine weight t	3.1				3.2				3.5		4.7			5.6			6.6			10.5
Work table height mm	1000				1000				1050		1065			1100			1200			1640

Specifications are for reference only; design is subject to change without prior notice. PS = polystyrene. Machine weight and dimensions without options.
