Type 5 · Rotary, 3 stations

TY-3R series

Three stations indexing 120°: one moulds, one keeps cooling after injection, one is unloaded and loaded. Every TY size is available as a 3R — the answer for long cooling times and insert-heavy parts.

12–250 tclamping force
28–828 gmax. shot weight (PS)
Ø20–Ø65screw options
13machine sizes

Technical data Check available options

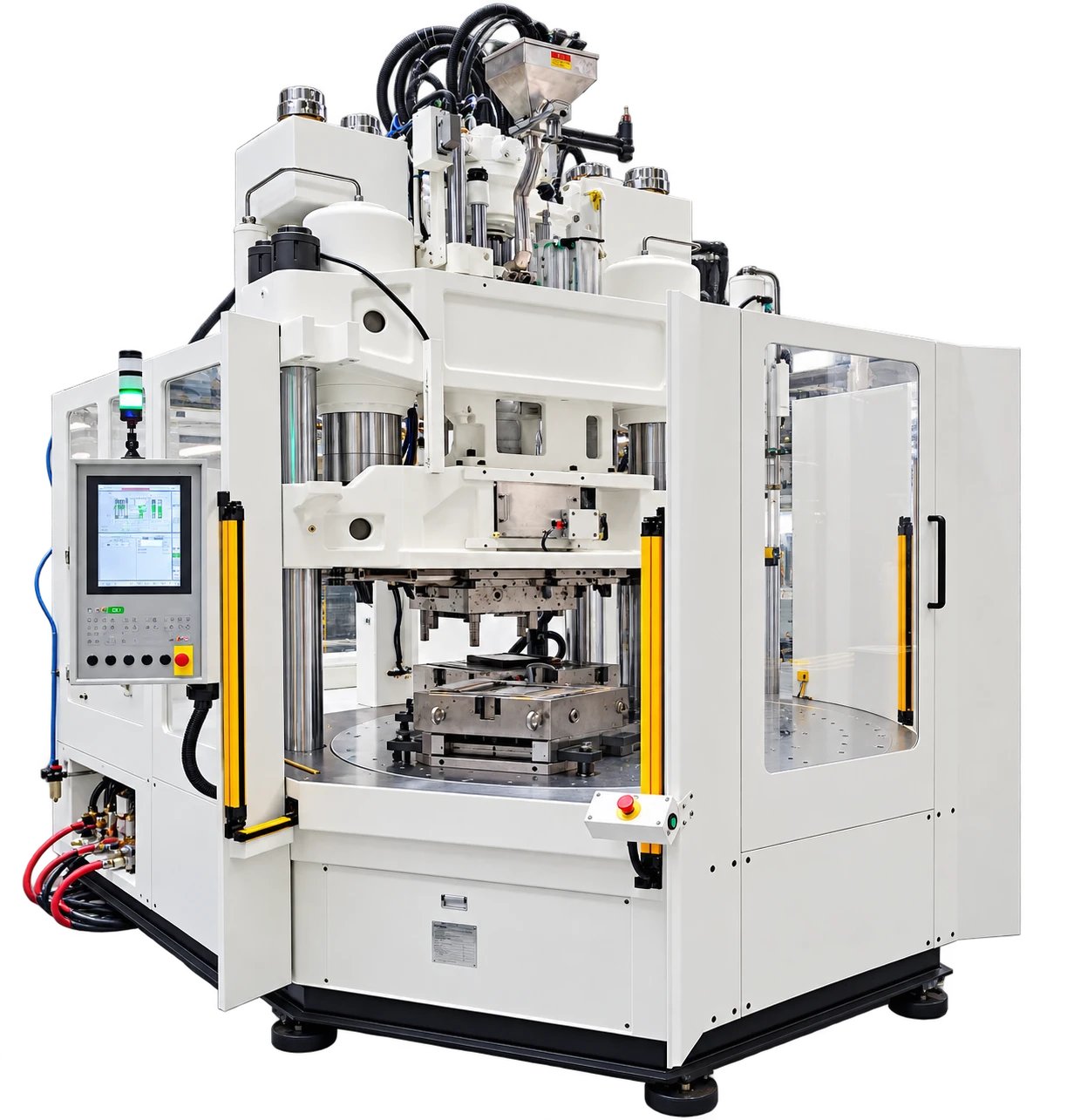

TY-3R three-station rotary vertical injection moulding machine

How it works

01

Three stations, 120° index

Moulding, cooling and loading run in parallel — the cycle is set by injection, not by cooling or loading.

02

Long cooling, no waiting

The extra station gives thick-walled parts their cooling time outside the clamp.

03

Every TY size as 3R

The 3R is built on the TY-R base machine — all sizes below, with three (or four) stations on request.

04

Automation-ready

Loading and unloading stations can be equipped with feeders, vision and take-out robots.

Rotary, 3 stations — cycle

Side view · operator right

Top view · operator bottom

Technical data

TY-3R series — full specifications

Screw-dependent values are shown per screw option. On a phone, scroll the tables sideways.

Base-machine data per TY-R rotary model. With a 3-station table the rotary table diameter and mould area are confirmed per project.

TY-3R series · TY-150.3R – TY-600.3R
Model	TY-150.3R12 t			TY-200.3R18 t			TY-260.3R25 t				TY-350.3R35 t				TY-400.3R40 t				TY-600.3R60 t
Injection unit
Screw diameter mm	Ø20	Ø22	Ø25	Ø22	Ø25	Ø28	Ø22	Ø25	Ø28	Ø32	Ø22	Ø25	Ø28	Ø32	Ø25	Ø28	Ø32	Ø36	Ø25	Ø28	Ø32	Ø36
Theoretical shot volume cm³	31	38	49	39	51	64	39	51	64	84	39	51	64	84	61	76	100	127	61	76	100	127
Max. shot weight (PS) g / oz	28/0.9	34/1.2	43/1.5	35/1.2	45/1.5	57/2.0	35/1.2	45/1.5	57/2.0	75/2.6	35/1.2	45/1.5	57/2.0	75/2.6	54/1.9	68/2.4	89/3.1	113/4	54/1.9	68/2.4	89/3.1	113/4
Injection pressure kg/cm²	1968	1627	1260	2342	1814	1446	2342	1814	1446	1107	2342	1814	1446	1107	2329	1857	1421	1123	2329	1857	1421	1123
Injection rate cm³/s	36	44	57	30	39	50	30	39	50	65	40	52	66	86	41	51	67	85	65	81	106	135
Injection speed mm/s	94			81			81				107				83				132
Locating ring diameter mm	Ø90			Ø90			Ø90				Ø90				Ø100				Ø100
Temperature control zones	2			3			3				3				3				3
Hopper capacity L	15			15			15				15				20				20
Nozzle protrusion from platen mm	30			30			30				30				30				35
Clamping unit
Clamping force t	12			18			25				35				40				60
Mould opening force t	2.3			2.8			3.4				3.8				4.2				5
Min. mould height mm	120/180			100/180			100/180				100/180				150/200				150/200
Opening stroke mm	160			180			180				200				200				200
Max. open daylight mm	280/340			280/360			280/360				300/380				350/400				350/400
Ejector stroke mm	60			60			60				60				60				60
Ejector force t	2.3			2.3			2.3				2.3				2.3				2.3
Table
Rotary table diameter mm	580			700			700				700				900				900
Max. mould dimensions mm	175 × 175			260 × 260			260 × 260				260 × 260				300 × 300				300 × 300
Power
Max. hydraulic pressure kg/cm²	140			140			140				140				140				140
Oil tank capacity L	100			100			120				160				160				260
Pump motor power kW	3			4			4				5.5				5.5				7.5
Barrel heating power kW	2.5			3.1			3.1				3.1				4.5				4.6
Total connected power kW	5.5			7.1			7.1				8.6				10				12.1
Cooling water L/min	15			15			15				25				25				35
Machine
Dimensions (L × W × H) m	1.6 × 1.1 × 2.6			1.7 × 1.3 × 2.9			1.7 × 1.3 × 2.9				1.7 × 1.3 × 3				2.2 × 1.4 × 2.9				2.2 × 1.4 × 2.9
Machine weight t	0.8			1.6			1.8				1.8				2.5				2.7
Work table height mm	926			965			965				1005				870				870

TY-3R series · TY-700.3R – TY-2500.3R
Model	TY-700.3R70 t				TY-850.3R85 t				TY-1000.3R100 t		TY-1200.3R120 t			TY-1600.3R160 t			TY-2200.3R213 t			TY-2500.3R250 t
Injection unit
Screw diameter mm	Ø28	Ø32	Ø36	Ø42	Ø28	Ø32	Ø36	Ø42	Ø36	Ø42	Ø42	Ø46	Ø50	Ø46	Ø50	Ø55	Ø46	Ø50	Ø55	Ø55	Ø60	Ø65
Theoretical shot volume cm³	110	144	183	249	110	144	183	249	213	290	332	398	471	398	471	569	398	471	569	664	791	928
Max. shot weight (PS) g / oz	98/3.4	129/4.5	163/5.7	222/7.8	98/3.4	129/4.5	163/5.7	222/7.8	190/6.7	259/9.1	296/10.4	355/12.5	420/14.8	355/12.5	420/14.8	508/17.9	355/12.5	420/14.8	508/17.9	593/20.9	706/24.9	828/29.2
Injection pressure kg/cm²	2848	2180	1722	1265	2848	2180	1722	1265	2457	1805	2218	1849	1565	2311	1956	1616	2311	1956	1616	2311	1942	1654
Injection rate cm³/s	53	69	88	119	62	81	102	140	109	149	122	146	172	157	186	225	198	223	270	232	276	324
Injection speed mm/s	86				101				108		88			94			113			97
Locating ring diameter mm	Ø120				Ø120				Ø120		Ø120			Ø120			Ø120			Ø120
Temperature control zones	4				4				4		4			4			5			6
Hopper capacity L	30				30				30		30			30			30			30
Nozzle protrusion from platen mm	35				35				35		35			40			40			45
Clamping unit
Clamping force t	70				85				100		120			160			213			250
Mould opening force t	7.2				10.5				11		12			16			18			18
Min. mould height mm	200/250				200/250				200		250			300			350			350
Opening stroke mm	250				250				250		300			300			300			400
Max. open daylight mm	450/500				450/500				450		550			600			650			750
Tie-bar distance mm	—				—				—		—			660 × 630			720 × 670			720 × 700
Ejector stroke mm	70				70				75		100			100			150			150
Ejector force t	2.3				2.3				2.7		3.9			5.3			7			7
Table
Rotary table diameter mm	1000				1000				1100		1224			1480			1600			1600
Max. mould dimensions mm	360 × 360				360 × 360				400 × 400		440 × 440			530 × 530			550 × 550			550 × 550
Power
Max. hydraulic pressure kg/cm²	140				140				140		140			175			175			175
Oil tank capacity L	260				260				460		460			500			600			730
Pump motor power kW	7.5				11				15		15			18.5			22			30
Barrel heating power kW	4.7				4.7				5.2		10.7			10.8			15			16.8
Total connected power kW	12.2				15.7				20.2		25.7			29.3			37			46.8
Cooling water L/min	35				40				45		45			50			60			60
Machine
Dimensions (L × W × H) m	2.6 × 1.5 × 3.2				2.6 × 1.5 × 3.2				2.7 × 1.6 × 3.4		2.7 × 1.7 × 4.3			3.1 × 1.9 × 4.4			3.3 × 2.1 × 4.6			3.5 × 2 × 5.5
Machine weight t	3.3				3.4				4		5.7			7			8.8			12
Work table height mm	910				910				910		1065			1075			1150			1660

Specifications are for reference only; design is subject to change without prior notice. PS = polystyrene. Machine weight and dimensions without options.
