Built for high-precision parts.

A servo-electric injection unit doses and injects with electric precision, while a servo-driven hydraulic clamp delivers the force — electric repeatability with hydraulic robustness, on a vertical machine made for inserts.

0.01 mmcontrol precision
±2 %repeatability
40–70 %energy saving
XL dimensionOption for rotary tables

See the advantages Technical data

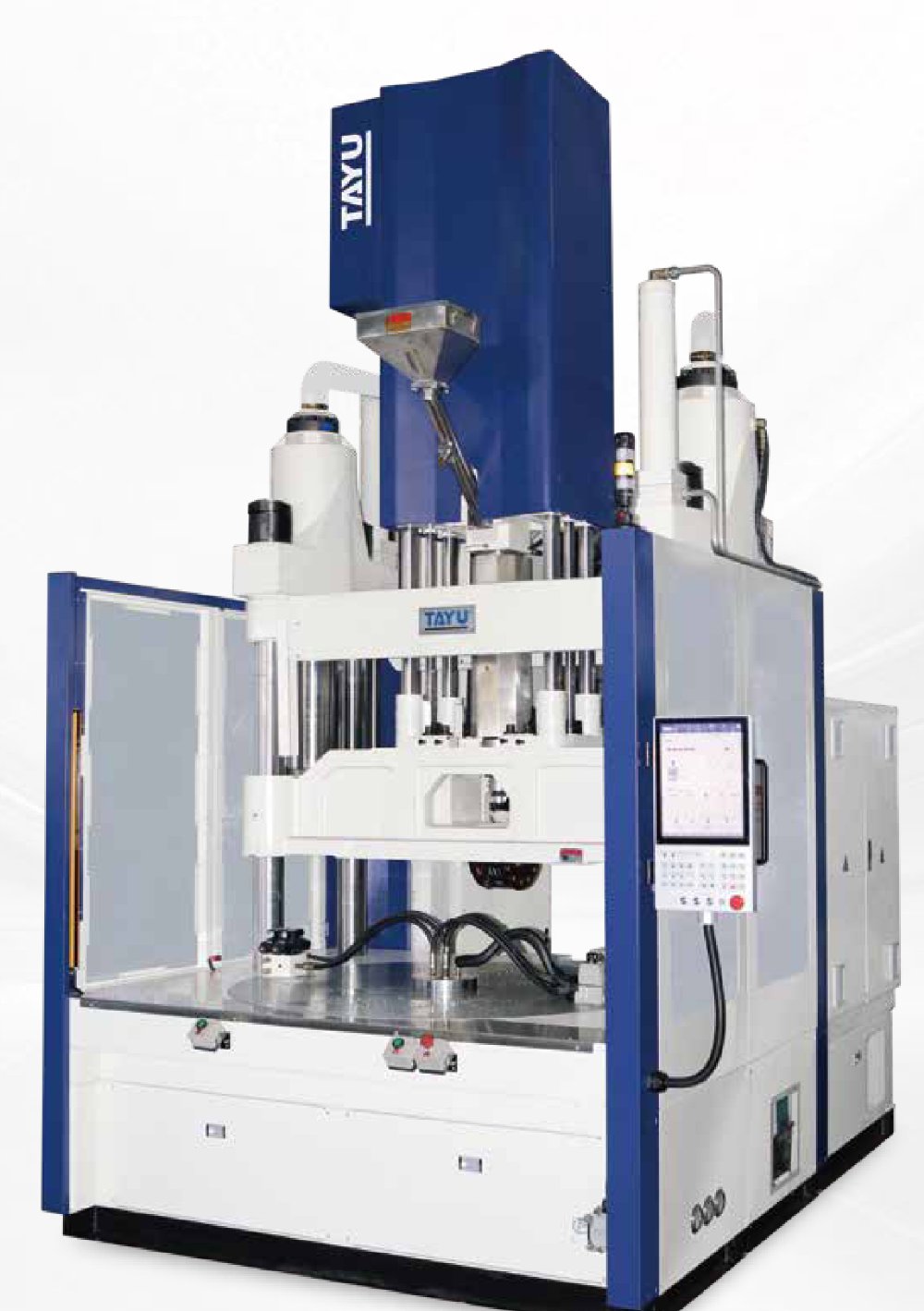

ETU-1600.2R.SF.J hybrid electro-hydraulic vertical rotary injection moulding machine — ETU-1600.2R.SF.J · low-table rotary hybrid

Hybrid electro-hydraulic Hydraulic clamping – electric injection

Electric injection. Hydraulic clamping.

Part quality in insert moulding is decided in the injection unit: how exactly the screw doses and how precisely it injects and holds pressure. On the ET / ETU series that motion is servo-electric — controlled to 0.01 mm and repeatable within ±2 %.

The clamp stays hydraulic, driven by a servo pump (max. 140–175 kg/cm²) that only draws energy when it works. The result: the accuracy and low consumption of electric injection, with the clamping force, robustness and service-friendliness of a hydraulic vertical clamp.

Electric injection

Servo-electric dosing
Servo-electric injection & holding
0.01 mm control precision
±2 % repeatability

Hydraulic clamping

Vertical hydraulic clamp
Ejection & table drive
Servo pump runs on demand
40–70 % less energy

Advantages

Six reasons to choose the hybrid series.

High precision

Servo-motor precision control reaches 0.01 mm, with a repeatability of ±2 %. Shot after shot, the part stays the same — the basis for precision overmoulding.

More efficient

Electric servo injection and a servo-driven hydraulic clamp: high efficiency and energy conversion, short cycles and low energy consumption.

More convenient

Ergonomic working conditions — the work table can be lowered to below 850 mm, so the operator loads inserts at a natural height.

High cost-effectiveness

Original German design and manufacturing process, technology and quality comparable with European machines — mass-produced, so the price stays competitive.

Smarter control

A more advanced control system with more powerful and accurate CPU control — 2 ms program scan and stable temperature control within ±0.5 °C.

More energy-efficient

Energy savings of 40–70 % compared with conventional hydraulic vertical machines.

Where it pays off

Parts that have to be right every shot.

Connectors & terminals — metal contacts overmoulded with tight positional tolerance.
Sensors & electronics — encapsulation of sensitive inserts at controlled pressure.
Precision metal overmoulding — bushings, pins and stampings in automotive parts.
Medical & optical parts — small shots where repeatability decides the scrap rate.

Smarter control system

Resistive colour touch screen
Intel processor — efficient, accurate CPU control with a 2 ms program scan cycle
Action sequence programmable online
Automatic adjustment of action slope (ramps)
Stable temperature control, ≤ ±0.5 °C
Remote fault diagnosis
Distributed control over the VARAN bus — easy module expansion
Any national language, with rich quality-management functions

Technical data

ET / ETU series — full specifications

Choose the table type. Screw-dependent values are shown per screw option; on a phone, scroll the tables sideways.

Vertical clamp, fixed lower mould — the hybrid base machine.

ET · ET-400 – ET-850
Model	ET-40040 t				ET-60060 t			ET-70070 t			ET-85085 t
Injection unit
Screw diameter mm	Ø16	Ø18	Ø20	Ø22	Ø22	Ø25	Ø28	Ø25	Ø28	Ø32	Ø28	Ø32	Ø36
Screw stroke mm	70				100			110			120
Theoretical shot volume cm³	14	17	21	26	37	49	61	53	67	88	73	96	122
Max. shot weight (PS) g / oz	12/0.4	15/0.5	19/0.6	23/0.8	33/1.16	43/1.51	54/1.90	48/1.7	60/2.1	78/2.7	65/2.3	86/3	108/3.8
Injection pressure kg/cm²	2800	2800	2500	2200	2700	2200	1800	2700	2200	1700	2700	2200	1700
Holding pressure kg/cm²	2200	2200	2000	1750	2120	1750	1440	2120	1750	1360	2120	1750	1360
Injection rate cm³/s	40–70	50–89	62–109	75–132	75–132	98–171	123–215	98–171	123–215	160–281	123–215	160–281	203–356
Injection speed mm/s	200–350				200–350			200–350			200–350
Screw speed r/min	400				400			400			400
Locating ring diameter mm	Ø100				Ø100			Ø120			Ø120
Temperature control zones	3				3			4			4
Hopper capacity L	20				20			30			30
Nozzle mm	SR10 × Ø3				SR10 × Ø3			SR10 × Ø3			SR10 × Ø3
Nozzle protrusion from platen mm	30				35			35			35
Clamping unit
Clamping force t	40				60			70			85
Mould opening force t	4.2				5			7.2			10.5
Min. mould height mm	150/200				150/200			200/250			200/250
Opening stroke mm	200				200			250			250
Max. open daylight mm	350/400				350/400			450/500			450/500
Tie-bar distance mm	415 × 255				460 × 310			500 × 340			500 × 340
Ejector stroke mm	40				60			60			60
Ejector force t	1.3				2.7			2.7			2.7
Power
Max. hydraulic pressure kg/cm²	140				140			140			140
Oil tank capacity L	100				120			120			150
Servo pump displacement L/min	50				60			60			78
Barrel heating power kW	3.5				4.5			5			5
Cooling water L/min	25				35			35			40
Machine
Dimensions (L × W × H) m	1.9 × 1.1 × 3.3				1.9 × 1.2 × 3.3			1.8 × 1.1 × 3.6			1.8 × 1.1 × 3.6
Machine weight t	2				2.4			3			3.1
Work table height mm	987				995			1180			1180

ET · ET-1000 – ET-3500
Model	ET-1000100 t		ET-1200120 t		ET-1600160 t		ET-2100210 t		ET-2500250 t		ET-3500350 t
Injection unit
Screw diameter mm	Ø36	Ø42	Ø42	Ø46	Ø46	Ø50	Ø46	Ø50	Ø46	Ø50	Ø46	Ø50
Screw stroke mm	150		180		200		200		200		200
Theoretical shot volume cm³	152	207	249	298	332	392	332	392	332	392	332	392
Max. shot weight (PS) g / oz	136/4.8	185/6.5	222/7.8	266/9.4	296/10.4	350/12.3	296/10.4	350/12.3	296/10.4	350/12.3	296/10.4	350/12.3
Injection pressure kg/cm²	2200	1650	2200	2000	2000	1800	2000	1800	2000	1800	2000	1800
Holding pressure kg/cm²	1750	1320	1750	1600	1600	1440	1600	1440	1600	1440	1600	1440
Injection rate cm³/s	203–356	276–484	276–484	332–581	332–581	392–686	332–581	392–686	332–581	392–686	332–581	392–686
Injection speed mm/s	200–350		200–350		200–350		200–350		200–350		200–350
Screw speed r/min	300		300		300		300		300		300
Locating ring diameter mm	Ø120		Ø120		Ø120		Ø120		Ø120		Ø120
Temperature control zones	4		4		4		5		6		6
Hopper capacity L	30		30		30		30		30		30
Nozzle mm	SR10 × Ø3		SR10 × Ø3.5		SR10 × Ø3.5		SR10 × Ø3.5		SR10 × Ø3.5		SR10 × Ø3.5
Nozzle protrusion from platen mm	35		35		40		40		45		50
Clamping unit
Clamping force t	100		120		160		210		250		350
Mould opening force t	11		12		16		18		18		23
Min. mould height mm	200		250		300		350		350		350
Opening stroke mm	250		300		300		300		400		450
Max. open daylight mm	450		550		600		650		750		800
Tie-bar distance mm	560 × 360		600 × 400		660 × 630		720 × 670		720 × 700		830 × 600
Ejector stroke mm	75		75		75		75		100		100
Ejector force t	3.9		4.6		5.3		6.2		6.3		6.3
Power
Max. hydraulic pressure kg/cm²	140		140		140		140		140		140
Oil tank capacity L	240		240		240		300		360		450
Servo pump displacement L/min	120		120		120		150		184		220
Barrel heating power kW	5.2		10.7		12.5		12.5		12.5		12.5
Cooling water L/min	45		45		50		60		60		70
Machine
Dimensions (L × W × H) m	1.9 × 1.4 × 3.8		2.2 × 1.5 × 4.6		2.3 × 1.5 × 4.7		2.3 × 1.6 × 5.2		2.4 × 1.6 × 5.3		2.5 × 1.8 × 5.7
Machine weight t	3.5		5		6		9		10		12
Work table height mm	1180		1210		1210		1400		1600		1860

Single slide table: load and unload outside the clamp.

ET-S · ET-400S – ET-850S
Model	ET-400S40 t				ET-600S60 t			ET-700S70 t			ET-850S85 t
Injection unit
Screw diameter mm	Ø16	Ø18	Ø20	Ø22	Ø22	Ø25	Ø28	Ø25	Ø28	Ø32	Ø28	Ø32	Ø36
Screw stroke mm	70				100			110			120
Theoretical shot volume cm³	14	17	21	26	37	49	61	53	67	88	73	96	122
Max. shot weight (PS) g / oz	12/0.4	15/0.5	19/0.6	23/0.8	33/1.16	43/1.51	54/1.90	48/1.7	60/2.1	78/2.7	65/2.3	86/3	108/3.8
Injection pressure kg/cm²	2800	2800	2500	2200	2700	2200	1800	2700	2200	1700	2700	2200	1700
Holding pressure kg/cm²	2200	2200	2000	1750	2120	1750	1440	2120	1750	1360	2120	1750	1360
Injection rate cm³/s	40–70	50–89	62–109	75–132	75–132	98–171	123–215	98–171	123–215	160–281	123–215	160–281	203–356
Injection speed mm/s	200–350				200–350			200–350			200–350
Screw speed r/min	400				400			400			400
Locating ring diameter mm	Ø100				Ø100			Ø120			Ø120
Temperature control zones	3				3			4			4
Hopper capacity L	20				20			30			30
Nozzle mm	SR10 × Ø3				SR10 × Ø3			SR10 × Ø3			SR10 × Ø3
Nozzle protrusion from platen mm	30				35			35			35
Clamping unit
Clamping force t	40				60			70			85
Mould opening force t	4.2				5			7.2			10.5
Min. mould height mm	150/200				150/200			200/250			200/250
Opening stroke mm	200				200			250			250
Max. open daylight mm	350/400				350/400			450/500			450/500
Tie-bar distance mm	415 × 255				460 × 310			500 × 340			500 × 340
Ejector stroke mm	60				60			70			70
Ejector force t	2				2			2.3			2.3
Table
Slide platen size mm	390 × 420				450 × 480			495 × 500			495 × 500
Slide platen stroke mm	420				480			500			500
Max. mould dimensions mm	325 × 350				400 × 425			450 × 450			450 × 450
Power
Max. hydraulic pressure kg/cm²	140				140			140			140
Oil tank capacity L	100				120			120			150
Servo pump displacement L/min	50				60			60			78
Barrel heating power kW	3.5				4.5			5			5
Cooling water L/min	25				35			35			40
Machine
Dimensions (L × W × H) m	2.1 × 1.1 × 3.4				2.3 × 1.2 × 3.4			2.5 × 1.3 × 3.7			2.5 × 1.3 × 3.7
Machine weight t	2.3				2.7			3.4			3.5
Work table height mm	1071				1081			1000			1000

ET-S · ET-1000S – ET-3500S
Model	ET-1000S100 t		ET-1200S120 t		ET-1600S160 t		ET-2100S210 t		ET-2500S250 t		ET-3500S350 t
Injection unit
Screw diameter mm	Ø36	Ø42	Ø42	Ø46	Ø46	Ø50	Ø46	Ø50	Ø46	Ø50	Ø46	Ø50
Screw stroke mm	150		180		200		200		200		200
Theoretical shot volume cm³	152	207	249	298	332	392	332	392	332	392	332	392
Max. shot weight (PS) g / oz	136/4.8	185/6.5	222/7.8	266/9.4	296/10.4	350/12.3	296/10.4	350/12.3	296/10.4	350/12.3	296/10.4	350/12.3
Injection pressure kg/cm²	2200	1650	2200	2000	2000	1800	2000	1800	2000	1800	2000	1800
Holding pressure kg/cm²	1750	1320	1750	1600	1600	1440	1600	1440	1600	1440	1600	1440
Injection rate cm³/s	203–356	276–484	276–484	332–581	332–581	392–686	332–581	392–686	332–581	392–686	332–581	392–686
Injection speed mm/s	200–350		200–350		200–350		200–350		200–350		200–350
Screw speed r/min	300		300		300		300		300		300
Locating ring diameter mm	Ø120		Ø120		Ø120		Ø120		Ø120		Ø120
Temperature control zones	4		4		4		5		6		6
Hopper capacity L	30		30		30		30		30		30
Nozzle mm	SR10 × Ø3		SR10 × Ø3.5		SR10 × Ø3.5		SR10 × Ø3.5		SR10 × Ø3.5		SR10 × Ø3.5
Nozzle protrusion from platen mm	35		35		40		40		45		50
Clamping unit
Clamping force t	100		120		160		210		250		350
Mould opening force t	11		12		16		18		18		23
Min. mould height mm	200		250		300		350		350		350
Opening stroke mm	250		300		300		300		400		450
Max. open daylight mm	450		550		600		650		750		800
Tie-bar distance mm	560 × 360		600 × 400		660 × 630		720 × 670		720 × 700		830 × 600
Ejector stroke mm	75		100		100		150		150		150
Ejector force t	2.3		3.9		5.3		6.2		7		7
Table
Slide platen size mm	555 × 600		590 × 725		640 × 800		695 × 950		695 × 950		810 × 950
Slide platen stroke mm	600		750		800		950		950		950
Max. mould dimensions mm	450 × 450		500 × 600		550 × 650		600 × 800		600 × 800		720 × 800
Power
Max. hydraulic pressure kg/cm²	140		140		140		140		140		140
Oil tank capacity L	240		240		240		300		360		450
Servo pump displacement L/min	120		120		120		150		184		220
Barrel heating power kW	5.2		10.7		12.5		12.5		12.5		12.5
Cooling water L/min	45		45		50		60		60		70
Machine
Dimensions (L × W × H) m	2.6 × 1.4 × 3.9		2.8 × 1.5 × 4.7		3.1 × 1.5 × 4.8		3.5 × 1.6 × 5.3		3.5 × 1.6 × 5.4		3.6 × 1.8 × 5.8
Machine weight t	3.9		5.3		6.4		9.5		10.5		12.5
Work table height mm	1050		1065		1100		1200		1640		1880

Two lower moulds on a shuttle — one moulds while the other is loaded.

ET-DS · ET-400DS – ET-850DS
Model	ET-400DS40 t				ET-600DS60 t			ET-700DS70 t			ET-850DS85 t
Injection unit
Screw diameter mm	Ø16	Ø18	Ø20	Ø22	Ø22	Ø25	Ø28	Ø25	Ø28	Ø32	Ø28	Ø32	Ø36
Screw stroke mm	70				100			110			120
Theoretical shot volume cm³	14	17	21	26	37	49	61	53	67	88	73	96	122
Max. shot weight (PS) g / oz	12/0.4	15/0.5	19/0.6	23/0.8	33/1.16	43/1.51	54/1.90	48/1.7	60/2.1	78/2.7	65/2.3	86/3	108/3.8
Injection pressure kg/cm²	2800	2800	2500	2200	2700	2200	1800	2700	2200	1700	2700	2200	1700
Holding pressure kg/cm²	2200	2200	2000	1750	2120	1750	1440	2120	1750	1360	2120	1750	1360
Injection rate cm³/s	40–70	50–89	62–109	75–132	75–132	98–171	123–215	98–171	123–215	160–281	123–215	160–281	203–356
Injection speed mm/s	200–350				200–350			200–350			200–350
Screw speed r/min	400				400			400			400
Locating ring diameter mm	Ø100				Ø100			Ø120			Ø120
Temperature control zones	3				3			4			4
Hopper capacity L	20				20			30			30
Nozzle mm	SR10 × Ø3				SR10 × Ø3			SR10 × Ø3			SR10 × Ø3
Nozzle protrusion from platen mm	30				35			35			35
Clamping unit
Clamping force t	40				60			70			85
Mould opening force t	4.2				5			7.2			10.5
Min. mould height mm	150/200				150/200			200/250			200/250
Opening stroke mm	200				200			250			250
Max. open daylight mm	350/400				350/400			450/500			450/500
Tie-bar distance mm	415 × 255				460 × 310			500 × 340			500 × 340
Ejector stroke mm	60				60			70			70
Ejector force t	2				2			2.3			2.3
Table
Slide platen size mm	390 × 840				450 × 960			495 × 1000			495 × 1000
Slide platen stroke mm	420				480			500			500
Max. mould dimensions mm	325 × 350				400 × 425			450 × 450			450 × 450
Power
Max. hydraulic pressure kg/cm²	140				140			140			140
Oil tank capacity L	100				120			120			150
Servo pump displacement L/min	50				60			60			78
Barrel heating power kW	3.5				4.5			5			5
Cooling water L/min	25				35			35			40
Machine
Dimensions (L × W × H) m	2 × 1.1 × 3.4				2.2 × 1.2 × 3.4			2.8 × 1.3 × 3.7			2.8 × 1.3 × 3.7
Machine weight t	2.3				2.8			3.6			3.6
Work table height mm	1071				1081			1000			1000

ET-DS · ET-1000DS – ET-3500DS
Model	ET-1000DS100 t		ET-1200DS120 t		ET-1600DS160 t		ET-2100DS210 t		ET-2500DS250 t		ET-3500DS350 t
Injection unit
Screw diameter mm	Ø36	Ø42	Ø42	Ø46	Ø46	Ø50	Ø46	Ø50	Ø46	Ø50	Ø46	Ø50
Screw stroke mm	150		180		200		200		200		200
Theoretical shot volume cm³	152	207	249	298	332	392	332	392	332	392	332	392
Max. shot weight (PS) g / oz	136/4.8	185/6.5	222/7.8	266/9.4	296/10.4	350/12.3	296/10.4	350/12.3	296/10.4	350/12.3	296/10.4	350/12.3
Injection pressure kg/cm²	2200	1650	2200	2000	2000	1800	2000	1800	2000	1800	2000	1800
Holding pressure kg/cm²	1750	1320	1750	1600	1600	1440	1600	1440	1600	1440	1600	1440
Injection rate cm³/s	203–356	276–484	276–484	332–581	332–581	392–686	332–581	392–686	332–581	392–686	332–581	392–686
Injection speed mm/s	200–350		200–350		200–350		200–350		200–350		200–350
Screw speed r/min	300		300		300		300		300		300
Locating ring diameter mm	Ø120		Ø120		Ø120		Ø120		Ø120		Ø120
Temperature control zones	4		4		4		5		6		6
Hopper capacity L	30		30		30		30		30		30
Nozzle mm	SR10 × Ø3		SR10 × Ø3.5		SR10 × Ø3.5		SR10 × Ø3.5		SR10 × Ø3.5		SR10 × Ø3.5
Nozzle protrusion from platen mm	35		35		40		40		45		50
Clamping unit
Clamping force t	100		120		160		210		250		350
Mould opening force t	11		12		16		18		18		23
Min. mould height mm	200		250		300		350		350		350
Opening stroke mm	250		300		300		300		400		450
Max. open daylight mm	450		550		600		650		750		800
Tie-bar distance mm	560 × 360		600 × 400		660 × 630		720 × 670		720 × 700		830 × 600
Ejector stroke mm	75		100		100		150		150		150
Ejector force t	2.3		3.9		5.3		7		7		7
Table
Slide platen size mm	555 × 1100		590 × 1450		640 × 1600		695 × 1900		695 × 1900		810 × 1900
Slide platen stroke mm	600		750		800		950		950		950
Max. mould dimensions mm	450 × 450		500 × 600		500 × 650		600 × 800		600 × 800		720 × 800
Power
Max. hydraulic pressure kg/cm²	140		140		140		140		140		140
Oil tank capacity L	240		240		240		300		360		450
Servo pump displacement L/min	120		120		120		150		184		220
Barrel heating power kW	5.2		10.7		12.5		12.5		12.5		12.5
Cooling water L/min	45		45		50		60		60		70
Machine
Dimensions (L × W × H) m	3 × 1.4 × 3.9		3.5 × 1.5 × 4.7		3.7 × 1.6 × 4.7		4.3 × 1.7 × 5.3		4.4 × 1.6 × 5.4		4.4 × 1.8 × 5.8
Machine weight t	4.7		6.2		6.8		8.8		11.5		13.5
Work table height mm	1030		1100		1100		1200		1640		1880

Two-station rotary table, 180° alternating.

ET-R · ET-400.2R – ET-850.2R
Model	ET-400.2R40 t				ET-600.2R60 t			ET-700.2R70 t			ET-850.2R85 t
Injection unit
Screw diameter mm	Ø16	Ø18	Ø20	Ø22	Ø22	Ø25	Ø28	Ø25	Ø28	Ø32	Ø28	Ø32	Ø36
Screw stroke mm	70				100			110			120
Theoretical shot volume cm³	14	17	21	26	37	49	61	53	67	88	73	96	122
Max. shot weight (PS) g / oz	12/0.4	15/0.5	19/0.6	23/0.8	33/1.16	43/1.51	54/1.90	48/1.7	60/2.1	78/2.7	65/2.3	86/3	108/3.8
Injection pressure kg/cm²	2800	2800	2500	2200	2700	2200	1800	2700	2200	1700	2700	2200	1700
Holding pressure kg/cm²	2200	2200	2000	1750	2120	1750	1440	2120	1750	1360	2120	1750	1360
Injection rate cm³/s	40–70	50–89	62–109	75–132	75–132	98–171	123–215	98–171	123–215	160–281	123–215	160–281	203–356
Injection speed mm/s	200–350				200–350			200–350			200–350
Screw speed r/min	400				400			400			400
Locating ring diameter mm	Ø100				Ø100			Ø120			Ø120
Temperature control zones	3				3			4			4
Hopper capacity L	20				20			30			30
Nozzle mm	SR10 × Ø3				SR10 × Ø3			SR10 × Ø3			SR10 × Ø3
Nozzle protrusion from platen mm	30				35			35			35
Clamping unit
Clamping force t	40				60			70			85
Mould opening force t	4.2				5			7.2			10.5
Min. mould height mm	150/200				150/200			200/250			200/250
Opening stroke mm	200				200			250			250
Max. open daylight mm	350/400				350/400			450/500			450/500
Ejector stroke mm	60				60			70			70
Ejector force t	2.3				2.3			2.3			2.3
Table
Rotary table diameter mm	900				900			1000			1000
Max. mould dimensions mm	300 × 300				300 × 300			360 × 360			360 × 360
Power
Max. hydraulic pressure kg/cm²	140				140			140			140
Oil tank capacity L	100				120			120			150
Servo pump displacement L/min	50				60			60			78
Barrel heating power kW	3.5				4.5			5			5
Cooling water L/min	25				35			35			40
Machine
Dimensions (L × W × H) m	2 × 1.4 × 3.4				2.1 × 1.4 × 3.4			2.6 × 1.6 × 3.7			2.6 × 1.6 × 3.7
Machine weight t	2.3				3.2			3.7			3.7
Work table height mm	870				870			910			910

ET-R · ET-1000.2R – ET-3500.2R
Model	ET-1000.2R100 t		ET-1200.2R120 t		ET-1600.2R160 t		ET-2100.2R210 t		ET-2500.2R250 t		ET-3500.2R350 t
Injection unit
Screw diameter mm	Ø36	Ø42	Ø42	Ø46	Ø46	Ø50	Ø46	Ø50	Ø46	Ø50	Ø46	Ø50
Screw stroke mm	150		180		200		200		200		200
Theoretical shot volume cm³	152	207	249	298	332	392	332	392	332	392	332	392
Max. shot weight (PS) g / oz	136/4.8	185/6.5	222/7.8	266/9.4	296/10.4	350/12.3	296/10.4	350/12.3	296/10.4	350/12.3	296/10.4	350/12.3
Injection pressure kg/cm²	2200	1650	2200	2000	2000	1800	2000	1800	2000	1800	2000	1800
Holding pressure kg/cm²	1750	1320	1750	1600	1600	1440	1600	1440	1600	1440	1600	1440
Injection rate cm³/s	203–356	276–484	276–484	332–581	332–581	392–686	332–581	392–686	332–581	392–686	332–581	392–686
Injection speed mm/s	200–350		200–350		200–350		200–350		200–350		200–350
Screw speed r/min	300		300		300		300		300		300
Locating ring diameter mm	Ø120		Ø120		Ø120		Ø120		Ø120		Ø120
Temperature control zones	4		4		4		5		6		6
Hopper capacity L	30		30		30		30		30		30
Nozzle mm	SR10 × Ø3		SR10 × Ø3.5		SR10 × Ø3.5		SR10 × Ø3.5		SR10 × Ø3.5		SR10 × Ø3.5
Nozzle protrusion from platen mm	35		35		40		40		45		50
Clamping unit
Clamping force t	100		120		160		210		250		350
Mould opening force t	11		12		16		18		18		23
Min. mould height mm	200		250		300		350		350		350
Opening stroke mm	250		300		300		300		400		450
Max. open daylight mm	450		550		600		650		750		800
Ejector stroke mm	75		100		100		150		150		150
Ejector force t	2.7		3.9		5.3		7		7		7
Table
Rotary table diameter mm	1100		1224		1480		1600		1600		1800
Max. mould dimensions mm	400 × 400		440 × 440		530 × 530		550 × 550		550 × 550		670 × 670
Power
Max. hydraulic pressure kg/cm²	140		140		140		140		140		140
Oil tank capacity L	240		240		240		300		360		450
Servo pump displacement L/min	120		120		120		150		184		220
Barrel heating power kW	5.2		10.7		12.5		12.5		12.5		12.5
Cooling water L/min	45		45		50		60		60		70
Machine
Dimensions (L × W × H) m	2.7 × 1.7 × 3.9		2.7 × 1.8 × 4.4		3.1 × 2 × 4.8		3.3 × 2 × 5.4		3.5 × 2 × 5.5		3.6 × 2.1 × 5.8
Machine weight t	5.1		6.6		7.3		9		12.5		14.5
Work table height mm	910		1065		1075		1150		1660		1900

Rotary table with a work height of 815–930 mm (.2R.SF.J.V4).

ETU · ETU-600 – ETU-1200
Model	ETU-60060 t				ETU-85085 t				ETU-1000100 t		ETU-1200120 t
Injection unit
Screw diameter mm	Ø16	Ø18	Ø20	Ø22	Ø25	Ø28	Ø32	Ø36	Ø36	Ø42	Ø42	Ø46
Screw stroke mm	70				110				150		180
Theoretical shot volume cm³	14	17	21	26	53	67	88	111	152	207	249	298
Max. shot weight (PS) g / oz	12/0.4	15/0.5	19/0.6	23/0.8	48/1.7	60/2.1	78/2.7	99/3.5	136/4.8	185/6.5	222/7.8	266/9.4
Injection pressure kg/cm²	2800	2800	2500	2200	2700	2500	2200	1700	2200	1650	2200	2000
Holding pressure kg/cm²	2200	2200	2000	1750	2120	2000	1750	1360	1750	1320	1750	1600
Injection rate cm³/s	40–70	50–89	62–109	75–132	98–171	123–215	160–281	203–356	203–356	276–484	276–484	332–581
Injection speed mm/s	200–350				200–350				200–350		200–350
Screw speed r/min	400				400				300		300
Locating ring diameter mm	Ø100				Ø120				Ø120		Ø120
Temperature control zones	3				4				4		4
Hopper capacity L	20				30				30		30
Nozzle mm	SR10 × Ø3				SR10 × Ø3				SR10 × Ø3		SR10 × Ø3.5
Nozzle protrusion from platen mm	30				35				35		35
Clamping unit
Clamping force t	60				85				100		120
Mould opening force t	6				7.2				10.5		14
Min. mould height mm	200				200				200		250
Opening stroke mm	300				300				400		500
Max. open daylight mm	500				500				600		750
Ejector stroke mm	60				70				75		100
Ejector force t	2.3				2.3				3.9		3.9
Table
Rotary table diameter mm	900				1000				1100		1224
Max. mould dimensions mm	360 × 360				390 × 390				430 × 430		490 × 490
Power
Max. hydraulic pressure kg/cm²	175				175				175		175
Oil tank capacity L	120				150				240		240
Servo pump displacement L/min	60				78				120		120
Barrel heating power kW	4.6				4.7				5.2		10.7
Machine
Dimensions (L × W × H) m	2.5 × 1.7 × 3.1				2.8 × 1.9 × 3.6				2.8 × 1.9 × 3.8		3 × 2.2 × 4.4
Machine weight t	≈4				≈5.5				≈6.5		≈8.5
Work table height mm	815				815				815		850

ETU · ETU-1600 – ETU-4500
Model	ETU-1600160 t		ETU-2100210 t		ETU-2500250 t		ETU-2500 XL250 t		ETU-3500350 t		ETU-4500450 t
Injection unit
Screw diameter mm	Ø46	Ø50	Ø46	Ø50	Ø46	Ø50	Ø46	Ø50	Ø46	Ø50	Ø46	Ø50
Screw stroke mm	200		200		200		200		200		200
Theoretical shot volume cm³	332	392	332	392	332	392	332	392	332	392	332	392
Max. shot weight (PS) g / oz	296/10.4	350/12.3	296/10.4	350/12.3	296/10.4	350/12.3	296/10.4	350/12.3	296/10.4	350/12.3	296/10.4	350/12.3
Injection pressure kg/cm²	2000	1800	2000	1800	2000	1800	2000	1800	2000	1800	2000	1800
Holding pressure kg/cm²	1600	1440	1600	1440	1600	1440	1600	1440	1600	1440	1600	1440
Injection rate cm³/s	332–581	392–686	332–581	392–686	332–581	392–686	332–581	392–686	332–581	392–686	332–581	392–686
Injection speed mm/s	200–350		200–350		200–350		200–350		200–350		200–350
Screw speed r/min	300		300		300		300		300		300
Locating ring diameter mm	Ø120		Ø120		Ø120		Ø120		Ø120		Ø120
Temperature control zones	4		5		6		6		6		6
Hopper capacity L	30		30		30		30		30		30
Nozzle mm	SR10 × Ø3.5		SR10 × Ø3.5		SR10 × Ø3.5		SR10 × Ø3.5		SR10 × Ø3.5		SR10 × Ø3.5
Nozzle protrusion from platen mm	40		40		45		45		45		45
Clamping unit
Clamping force t	160		210		250		250		350		450
Mould opening force t	16		18		18		18		20		20
Min. mould height mm	300		350		350		350		350		400
Opening stroke mm	500		500		500		600		600		650
Max. open daylight mm	800		850		850		950		950		1050
Ejector stroke mm	100		120		120		120		120		120
Ejector force t	5.3		7		7		7		7		7
Table
Rotary table diameter mm	1370		1600		1600		1800		1800		2000
Max. mould dimensions mm	550 × 550		620 × 620		620 × 620		700 × 700		700 × 700		790 × 790
Power
Max. hydraulic pressure kg/cm²	175		175		175		175		175		175
Oil tank capacity L	240		300		360		360		450		520
Servo pump displacement L/min	120		150		184		184		220		260
Barrel heating power kW	10.8		15		16.8		16.8		19.8		19.8
Machine
Dimensions (L × W × H) m	3.3 × 2.5 × 4.6		3.4 × 2.6 × 4.7		3.4 × 2.6 × 4.7		3.6 × 2.8 × 4.9		3.7 × 3 × 5		4.1 × 3.4 × 5.1
Machine weight t	≈12		≈13		≈13.5		≈15.5		≈20		≈27
Work table height mm	855		888		900		900		920		930

Specifications are for reference only; design is subject to change without prior notice. PS = polystyrene. ETU-2500 XL = enlarged rotary table.

Have a high-precision part in mind?

Check available options Ask an application engineer
