Feeding
Bowl, tray or magazine insert feeding matched to the table index.
Vertical clamp · rotary table

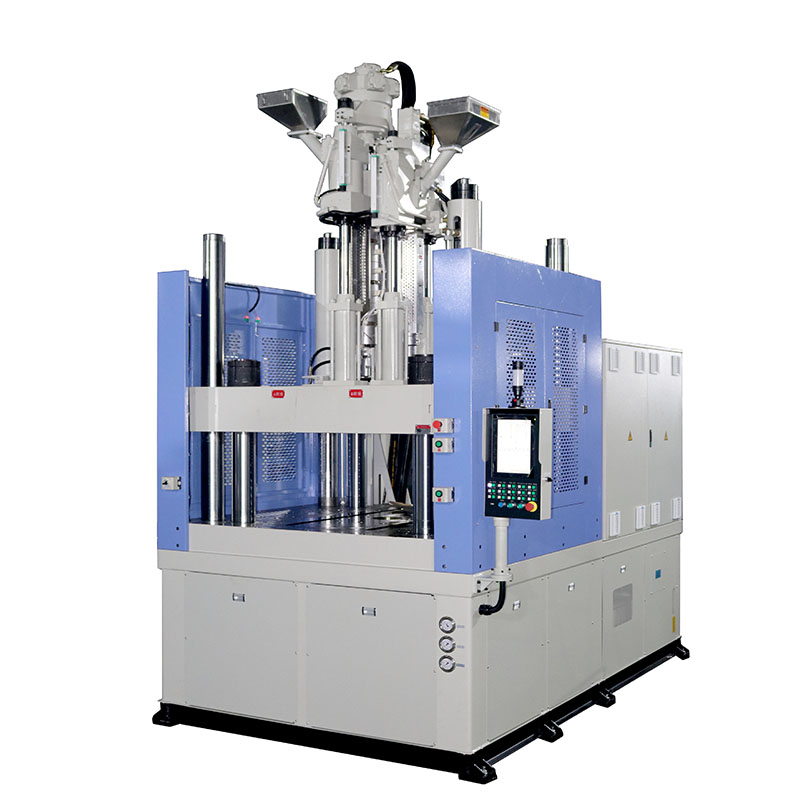

TYW-1000.2R.SF.J
100 t vertical injection moulding machine — rotary table, 2-station, servo, built for optical lens moulding.
The spec sheet downloads without a form — only CAD files ask for a company and email.
Clamping force
100 t
Table
Rotary table, 2-station, servo
Process
Single-shot
Insert loading
Robot / manual
| Parameter | Value |
|---|---|
| Clamping force | 100 t |
| Clamp orientation | Vertical |
| Table configuration | Rotary table, 2-station, servo |
| Process | Single-shot |
| Insert loading | Robot / manual |
| Shot weight | On request — see PDF spec sheet |
| Screw diameter | On request — see PDF spec sheet |
| Dry cycle / energy per cycle | On request — see PDF spec sheet |
| Parameter | Standard | Option |
|---|---|---|
| Rotary table, more stations | Rotary table, 2-station, servo | 2 ↔ 3-station rotary index |
| Insert loading | Robot / manual | 6-axis robot cell + vision |
| Drive | Servo | All-electric (model dependent) |
| Process | Single-shot | Multi-shot (model dependent) |
Vision
Insert presence and orientation check before the clamp closes.
Take-out
Servo or 6-axis robot removal, degating and oriented placement.
- TYW-1000.2R.SF.J spec sheet (PDF) — ungated
- Full range brochure (PDF)
- CAD model — company + work email
Typical applications
Optical lens moulding. Suited to insert and overmoulded parts that leave the cell at higher added value.
In this cell
Pairs with robot / manual loading, vision check and robotic take-out — see Automation.
Service
Application engineering, spare parts and preventive maintenance — see Service.
