Feeding
Bowl, tray or magazine insert feeding matched to the table index.
Vertical clamp
TYU-1600S.J

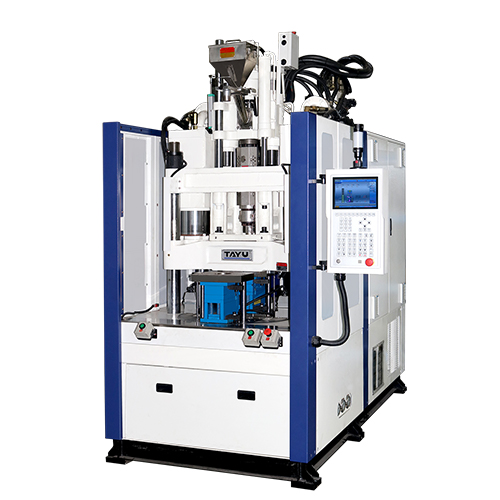

120 t vertical injection moulding machine — single sliding table, built for insert moulding with large-part loading.
The spec sheet downloads without a form — only CAD files ask for a company and email.
Clamping force
120 t
Table
Single sliding table
Process
Single-shot
Insert loading
Manual (slide)
| Parameter | Value |
|---|---|
| Clamping force | 120 t |
| Clamp orientation | Vertical |
| Table configuration | Single sliding table |
| Process | Single-shot |
| Insert loading | Manual (slide) |
| Shot weight | On request — see PDF spec sheet |
| Screw diameter | On request — see PDF spec sheet |
| Dry cycle / energy per cycle | On request — see PDF spec sheet |
| Parameter | Standard | Option |
|---|---|---|
| Sliding table | Single sliding table | Single ↔ double sliding table |
| Insert loading | Manual (slide) | 6-axis robot cell + vision |
| Drive | Servo-hydraulic | All-electric (model dependent) |
| Process | Single-shot | Multi-shot (model dependent) |
Vision
Insert presence and orientation check before the clamp closes.
Take-out
Servo or 6-axis robot removal, degating and oriented placement.
- TYU-1600S.J spec sheet (PDF) — ungated
- Full range brochure (PDF)
- CAD model — company + work email
Typical applications
Insert moulding with large-part loading. Suited to insert and overmoulded parts that leave the cell at higher added value.
In this cell
Pairs with manual (slide) loading, vision check and robotic take-out — see Automation.
Service
Application engineering, spare parts and preventive maintenance — see Service.
