Feeding
Bowl, tray or magazine insert feeding matched to the table index.
Vertical clamp · rotary table

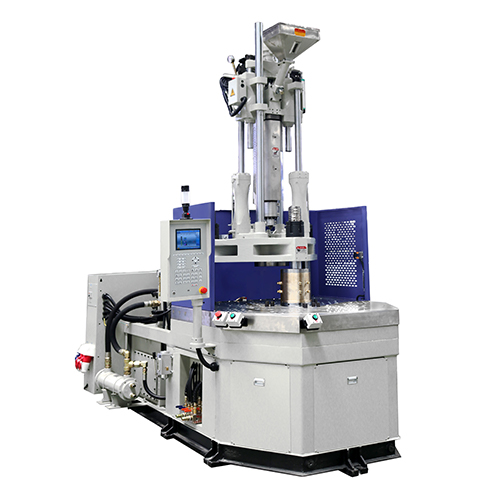

TY-1600.2C.ZT.J
160 t vertical injection moulding machine — turntable, 2-station, built for two-component / two-shot moulding.
The spec sheet downloads without a form — only CAD files ask for a company and email.
Clamping force
160 t
Table
Turntable, 2-station
Process
Two-colour / two-shot
Insert loading
Robot
| Parameter | Value |
|---|---|
| Clamping force | 160 t |
| Clamp orientation | Vertical |
| Table configuration | Turntable, 2-station |
| Process | Two-colour / two-shot |
| Insert loading | Robot |
| Shot weight | On request — see PDF spec sheet |
| Screw diameter | On request — see PDF spec sheet |
| Dry cycle / energy per cycle | On request — see PDF spec sheet |
| Parameter | Standard | Option |
|---|---|---|
| Turntable stations | Turntable, 2-station | 2-station turntable, servo index |
| Insert loading | Robot | 6-axis robot cell + vision |
| Drive | Servo-hydraulic | All-electric (model dependent) |
| Process | Two-colour / two-shot | Multi-shot (model dependent) |
Vision
Insert presence and orientation check before the clamp closes.
Take-out
Servo or 6-axis robot removal, degating and oriented placement.
- TY-1600.2C.ZT.J spec sheet (PDF) — ungated
- Full range brochure (PDF)
- CAD model — company + work email
Typical applications
Two-component / two-shot moulding. Suited to multi-material parts that leave the cell at higher added value.
In this cell
Pairs with robot loading, vision check and robotic take-out — see Automation.
Service
Application engineering, spare parts and preventive maintenance — see Service.
